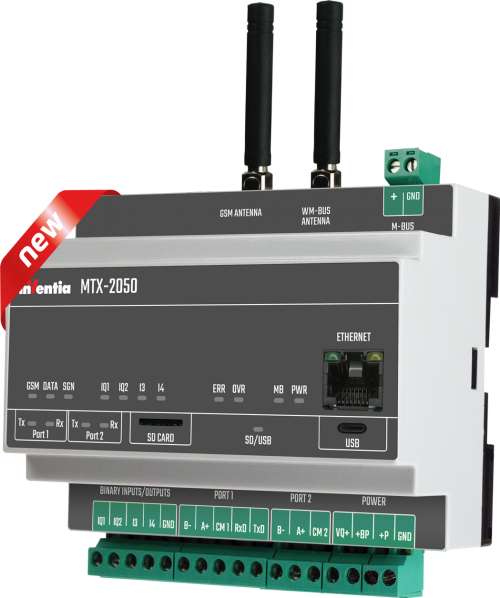

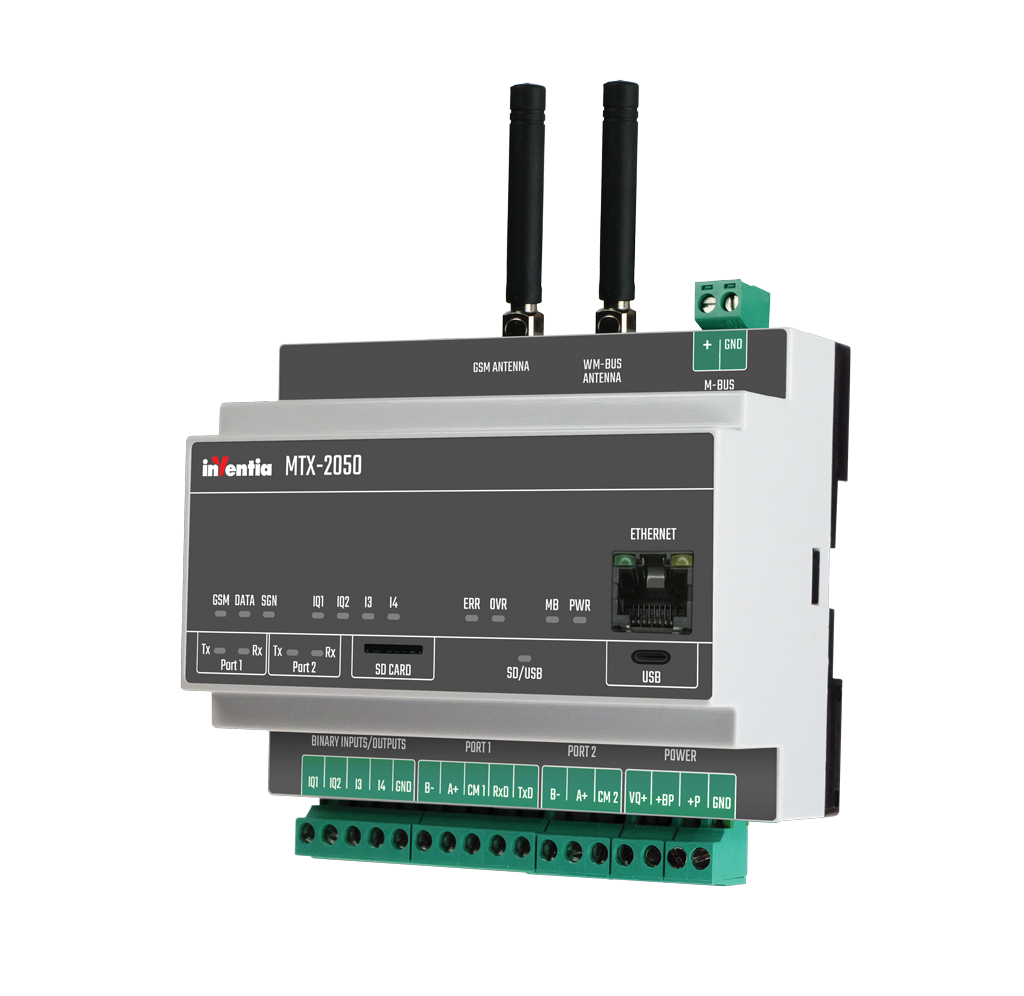

MTX-2050 v4 – 2G/LTE communication gateway with an Ethernet port
The MTX-2050 v4 is an advanced industrial communication and telemetry gateway designed for wireless data transmission over 2G/LTE networks and communication with external devices via Ethernet, RS-232, RS-485, M-Bus and optional wM-Bus interfaces. Thanks to the built-in WebGUI, users can configure the device, perform diagnostics and visualize data, while support for Modbus RTU/TCP, UDP, MQTT and SNMP protocols enables easy integration with automation, SCADA, IoT and Smart Metering systems.
The module can operate as both a Modbus Master and Slave, cyclically polling external devices, analysing state changes and alarms, and executing local event-based logic. Protocol conversion, Modbus routing, resource mapping and Multimaster functionality allow multiple devices to be integrated within a single communication platform. The built-in data logger with support for microSD/SDHC/SDXC cards up to 256 GB enables local storage of data and events with timestamps.
Dual-SIM technology enables operation with two independent cellular networks, increasing transmission reliability and redundancy. Version v4 has also been extended with support for M-Bus and optional wM-Bus, allowing direct integration with electricity, heat, water and gas meters.
Key features and benefits
- 4G LTE Cat. 1 modem with 2G support – provides stable cellular data transmission.
- Dual-SIM technology – enables operation with two independent GSM networks for transmission redundancy.
- 100Base-TX/10Base-T Ethernet port with Auto MDI/MDI-X – wired communication with external devices and supervisory systems.
- Two isolated serial ports – one configurable RS-232/RS-485 port and one RS-485 port.
- M-Bus port – supports connection of up to 4 M-Bus devices.
- Optional wM-Bus interface – wireless communication with up to 20 metering devices.
- 4 binary inputs, 2 of which can be configured as binary outputs – enables signal monitoring and local control.
- Support for Modbus RTU, Modbus TCP, UDP and MQTT – broad compatibility with automation, telemetry and IoT systems.
- Modbus Master and Slave, routing and Multimaster functionality – advanced device integration and data exchange.
- Built-in WebGUI and SSH access – convenient configuration, diagnostics and data visualization.
- Data logger with support for microSD/SDHC/SDXC cards up to 256 GB – local storage of data and events.
- Built-in event processor – execution of transmission rules, alarms and reactions to state changes.
- MQTT Publisher – direct data publishing to an MQTT broker.
- SNMP v2c/v3 and SNMP Trap support – integration with IT and OT infrastructure monitoring systems.
- SMS gateway – configurable SMS messages triggered by alarms and events.
- Advanced self-diagnostics and Watchdog – increased device reliability.
- Advanced security mechanisms – OpenVPN, IPsec/StrongSwan, RADIUS, 802.1X, firewall, TPM2 and SNORT intrusion detection and prevention.
- Remote configuration, diagnostics and FOTA firmware updates – remote device management without the need for on-site servicing.
- Redundant 10.8–53 V DC power inputs – suitable for industrial power supply systems.
- USB-C port – local configuration and programming.
- Real-time clock (RTC) and SNTP support – accurate time synchronization for logged data and events.
- Industrial design and 35 mm DIN rail mounting – easy installation in automation cabinets.
Applications of the MTX-2050 v4
- Remote communication in SCADA systems – integration of field devices and data transmission to supervisory systems.
- Industrial automation – monitoring, data acquisition and control of technological processes.
- Industrial IoT – collection, local processing and transmission of data to IoT platforms and MQTT brokers.
- Smart Metering – integration of electricity, heat, water and gas meters via M-Bus and optional wM-Bus.
- Power and district heating systems – remote supervision of distributed facilities and measuring devices.
- Water and wastewater management – monitoring of pumping stations, treatment facilities, meters and water infrastructure.
- Remote control and monitoring of municipal infrastructure – supervision of distributed installations and equipment.
- Security and telemetry systems – transmission of alarms, events and diagnostic data via LTE, Ethernet, SMS or SNMP.
- Modernization of existing metering installations – integration of legacy RS-232/RS-485 and M-Bus devices with modern IP-based systems.
Thanks to its extensive communication capabilities, support for M-Bus and wM-Bus, local data processing mechanisms and advanced security features, the MTX-2050 v4 is a versatile solution for telemetry, industrial automation, Smart Metering, IoT and remote monitoring applications. The combination of 2G/LTE, Ethernet, RS-232/RS-485, M-Bus/wM-Bus, Modbus, MQTT and SNMP communication technologies makes the device suitable for both new installations and modernization of existing infrastructure.
- 100Base-TX/10Base-T Ethernet port with auto MDI/MDI-X
- Isolated RS-232 or RS-485 serial port
- Isolated RS-485 serial port
- 4 binary inputs/2 configurable binary outputs
- USB-C port for local configuration and programming
- Internal flags and registers
- Remote firmware update (FOTA)
- Data logger supporting a microSD card
- Option to solder in a MIM card
- Slots for 2 SIM cards (2G/4G network redundancy)
- RTC clock with external synchronisation functions
- Integrated interface for microSD/SDHC/SDXC cards up to 256 GB
- Communication standards: 2G/LTE packet transmission, SMS, Ethernet, MQTT (Publisher)
- Network functionality: IPv4, port forwarding, NAT, DHCP client/server/relay
- Data management and visualisation via WebGUI
- Secure Shell (SSH) access
- Secure remote software updates
- Redundant rootfs partitions
- Protocol converter (supports Modbus RTU, Modbus TCP, UDP, MQTT)
- Access to remote resources via standard Modbus RTU and Modbus TCP protocols
- Packet routing and Multimaster support in Modbus mode
- Data transmission from external devices connected to the serial port, Ethernet port, M-Bus port and wM-Bus
- Mapping of external resources (mirroring) for event detection and triggering
- MT2MT buffer for direct data sharing between other MT telemetry modules
- Multicast in transparent mode
- Data transmission to an MQTT broker
- Zabbix support
- Data logger with recording to a microSD card
- Support for the SNMP v2c/v3 protocol (including SNMP Trap and query functionality). The module acts as an SNMP agent – a device that can be queried by a server and can send events spontaneously
- Remote configuration and programming via the 2G/LTE network
- Event-based transmission triggered by a change in the state of a binary input/output or the internal flag status
- Configurable access controls – list of authorised IP addresses and telephone numbers
- Configurable SMS messages triggered by alarms, with dynamic values inserted into the SMS text; support for symbolic names and macros
- Firewall support (iptables)
- Support for multi-level user permissions to ensure the security of transmitted data
- DIN rail mounting
- Built-in advanced self-diagnostics
- Screw terminals
- User-friendly configuration tools and communication driver (support for OPC and RDB) – MTDataProvider
Security:
- Available VPN security mechanisms: OpenVPN, STRONGSWAN (IPsec)
- RADIUS (Remote Authentication Dial-In User Service)
- 802.1X-based port authentication
- Private keys stored in TPM2
- SNORT intrusion detection and prevention
