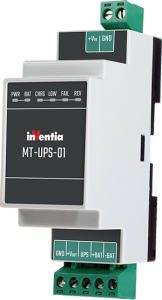

MT-UPS-1 – microprocessor controlled UPS module

Inventia.online > MT-UPS-1 – microprocessor controlled UPS module
Resources Functionality Technical drawing Photos PDF
  • Special, buffered power supply (UPS) for professional series of MT telemetry modules (MT-021, MT-101, MT-102, MT-151, MT-202)
  • Wide range of battery capacities from 2,4 Ah to 9Ah
  • Max. output current 1,5 A
  • Can be supplied from a photovoltaic cell (max. effect due to voltage adjustment)
  • Microprocessor controlled charging of battery
  • Integrated circuit for battery protection
  • 6 diagnostic LED diodes
  • Fast DIN rail mounting
  • IP40 protection class
  • 3 year warranty

MT-UPS-1 is a modern, digitally controlled buffered power supply acting as an UPS for telemetry modules and external receivers when main supply fails. The module can cooperate with any mains supply delivering 24 V DC (main power source) and an external SLA battery (backup power source) with 12 V nominal voltage. It can be used for batteries with 2,4 Ah to 9 Ah capacity. The module has a special output to warn of main supply failure – a classic UPS function.

The circuit charges and maintains the battery when main supply is active (mains or a photovoltaic cell). The algorythm for auto-adjustment for photovoltaic cell uses the energy delivered by photo voltaic cell under poor light conditions.

Resources

  • Special, buffered power supply (UPS) for professional series of MT telemetry modules (MT-021, MT-101, MT-102, MT-202)
  • Integrated circuit for battery protection
  • Can be supplied from a photovoltaic cell (max. effect due to voltage adjustment)
  • Microprocessor controlled charging of battery
  • Wide range of battery capacities from 2,4 Ah to 9 Ah
  • output current 1,5 A
  • 6 diagnostic LEDs (power supply and battery status, reverse battery polarity)
  • DIN rail mounting
  • ABS enclosure (IP40)

Functionality

  • LED diagnostic diodes reflect the current unit status.
  • Detachable terminals with clear marking
  • UPS compatible signal output for attachment of MT series telemetry modules
  • Independent of supply source stabilising of output voltage, secures performance under transmission (higher energy consumption)
  • Support for photovoltaic cells with max. effect at 16–18 V voltage
  • Step-up and step-down microprocessor controlled converter
  • Short circuit protection at inputs and outputs
  • Parametrising of voltages threshold protects the battery
  • Adapted to 12 V SLA batteries with 2,4 Ah to 9 Ah capacity
  • Wide operating temperature range -20 to +55 °C
  • Main supply voltage from 21,6 VDC
